Application Solution:

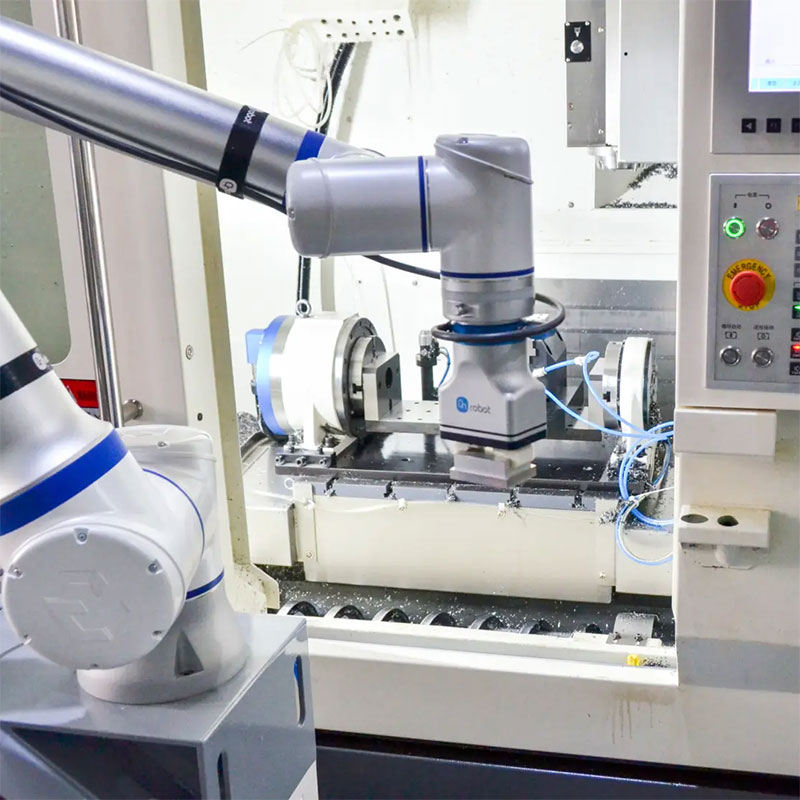

Machine Tending
Cobots are increasingly used in machine tending, automating tasks like loading and unloading parts in CNC machines, injection molding, and other industrial equipment. This approach improves efficiency, safety, and productivity, while allowing human operators to focus on higher-value tasks.
FAQ’s
Yes — especially with the mobile base option.
No — we provide simple integration tools and templates.
Yes — works with most CNCs with start/stop relay control.
You’ll still need qualified supervision, but the cobot executes consistent welds once programmed.
IDEAL USE CASES:
• Small to mid-sized machine shops
• CNC mills, lathes, and grinders
• Companies with limited labor or high-mix, low-volume production
WHAT YOU NEED:
Cobot Arm: 6-axis collaborative robot, 10kg payload, 1300mm reach
Gripper: 2-finger adaptive gripper with adjustable stroke (e.g., Robotiq 2F-85)
Mount/Base: Fixed pedestal with leveling feet
Machine Interface Kit: I/O interface for machine start/stop and status feedback
Vision System (Optional): 2D camera with part orientation detection for tray-based loading
Safety Add-on: Area scanner or light curtain (optional based on layout)
Programming Software: Drag-and-drop interface with machine tending templates
Training & Support: 1 day on-site setup + 4 hours remote training
SPECIFICATIONS:
Payload: 10 kg
Reach: 1300 mm
Cycle Time: ~15–25 sec depending on part
Repeatability: ±0.03 mm
Power: 110–240V standard outlet
PACKAGING OPTIONS:
Standard: No vision
Plus: Includes vision and camera stand
Premium: Includes mobile base + safety scanner
